The Complete Guide: Smart Film for Irregular Window Shapes

If you have ever tried to find a privacy solution for an arched, circular, palladian, or gable window, you already know the problem. Standard blinds don't fit the curve. Curtains obscure the architectural detail entirely. Permanently frosted glass solves the privacy issue but removes any choice you had about light and visibility. For decades, specialty and irregular window shapes have been one of the most underserved categories in privacy glazing — and one of the most common pain points for architects, designers, glaziers, and building owners alike.

Smart film changes that. In this guide we cover everything you need to know about smart film for irregular and specialty window shapes — what it is, how it works, which window shapes it works on, how it's cut and installed, and where it's most commonly used.
‍

What Is Smart Film?
‍

Smart film — also referred to as switchable privacy film, PDLC film, electrochromic film, or privacy glass film — is a thin, electrically activated film that is applied directly to existing glass. When connected to a power source and switched on, the film is completely transparent. When switched off, it frosts instantly — blocking the view from outside while still allowing diffused natural light to pass through.

The transition happens in less than a second and can be controlled by a wall switch, remote control, smart home system, or mobile app. Unlike permanently frosted glass, smart film gives the occupant full control over privacy at any given moment — clear when you want the light and the view, frosted when you need privacy.

Smart film does not require glass replacement. It is applied to the surface of existing glass using an adhesive layer, making it a practical retrofit solution for both new construction and existing buildings.
‍

Why Irregular Window Shapes Are Difficult to Solve For

‍

The glazing and fenestration industry has long struggled to offer practical privacy solutions for non-rectangular window shapes. The reasons are straightforward:

Blinds and shades are manufactured in standard rectangular dimensions. Even custom-made blinds cannot conform to a curved or angled frame without leaving gaps that compromise both aesthetics and privacy.

Curtains and drapes can cover most shapes but do so by hiding the window entirely. An arched palladian window or a circular oculus window covered by a curtain loses the very architectural quality that made it worth installing in the first place.

Standard frosted or privacy film is typically sold in rectangular rolls and cannot be cleanly applied to curved or angled glass without visible seams, bubbles, or uneven edges.

Permanently frosted or sandblasted glass solves the privacy problem but eliminates any possibility of a clear view — a significant trade-off for windows positioned to capture natural light or a desirable outlook.

Smart film addresses all of these limitations simultaneously. It can be trimmed to any shape, applied directly to any existing glass surface, and switched between clear and frosted on demand.

‍

Contact us today to get a quote for your custom window shape!

What Window Shapes Does Smart Film Work On?

‍

Smart film works on virtually any window shape. Below is a breakdown of the most common specialty and irregular window shapes and how smart film applies to each.
‍

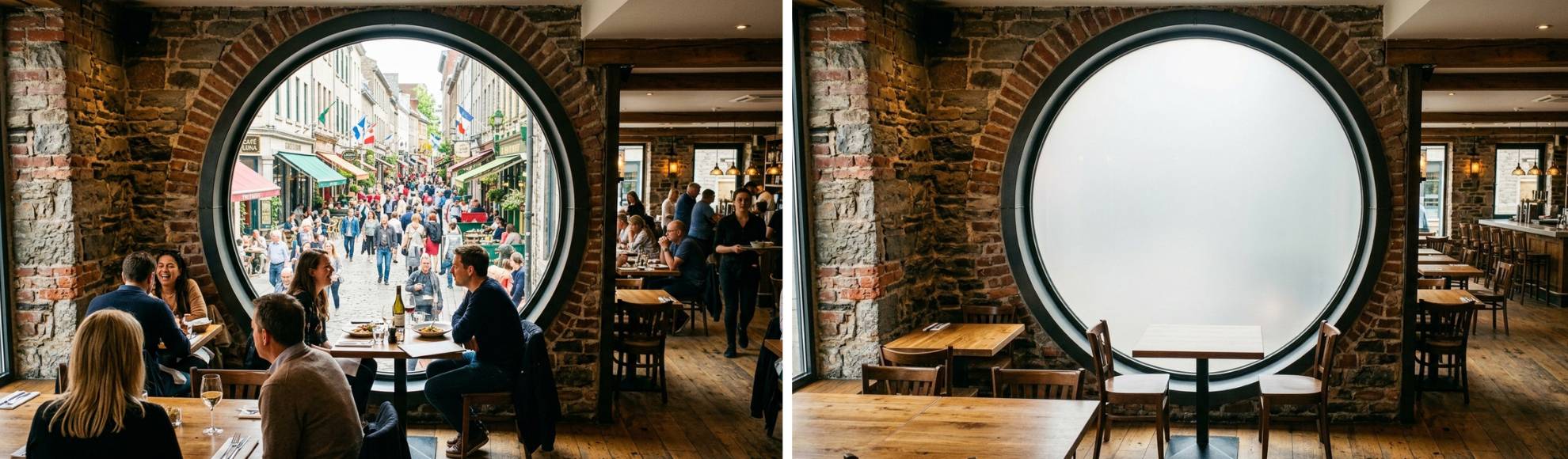

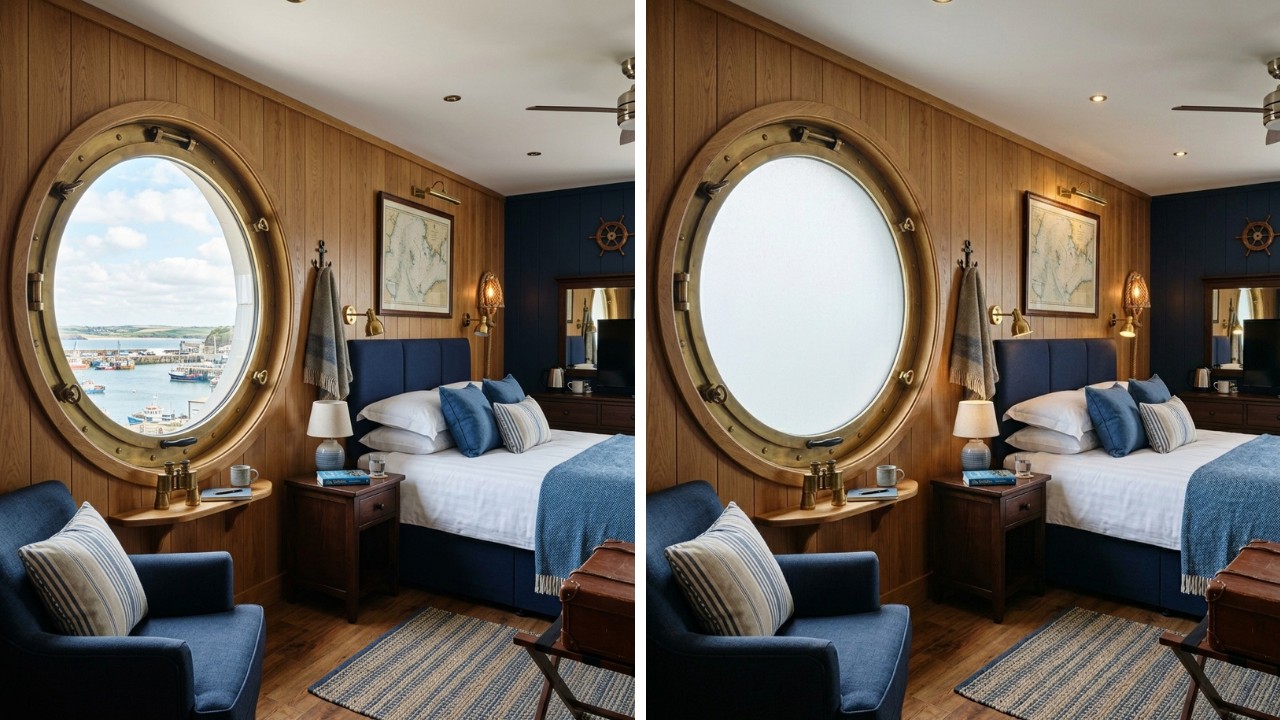

Circular Windows

Circular windows — including oculus windows, porthole windows, and bull's-eye windows — are among the most architecturally distinctive shapes in residential, hospitality, and commercial design. Smart film is trimmed to the exact circular dimensions of the glass, creating a seamless frosted disc when activated. Because circular windows have no defined sides, busbar placement (covered in detail below) is more flexible than with other specialty shapes.

Arched Windows

Arched windows come in several variations, each with their own proportions and character:

• Semicircular arches — a full half-circle top on a rectangular base
• Elliptical arches — a flattened, oval-shaped curve
• Segmental arches — a shallow arc that is less than a semicircle
• Gothic arches — a pointed arch common in ecclesiastical and heritage architecture

Smart film is trimmed to follow the exact curve of any arch style, maintaining a clean edge against the frame and preserving the window's silhouette in both the clear and frosted state.

Palladian Windows

A palladian window features a central arched opening flanked by two narrower rectangular panels. They are a hallmark of classical and neoclassical architecture and are frequently used in residential entryways, formal living rooms, and institutional buildings. Smart film can be applied to the arched central panel, the rectangular side panels, or all three — each trimmed independently to their respective shapes.

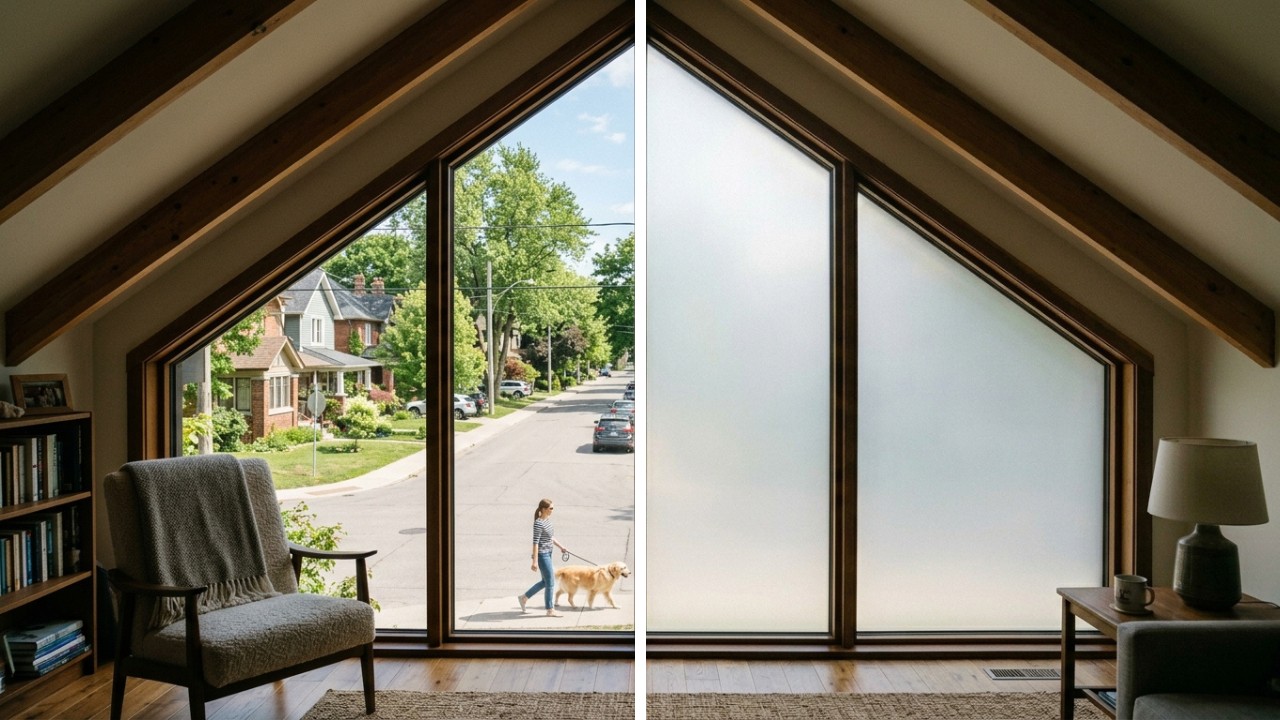

Gable Windows

Gable windows are triangular windows positioned within the gable end of a roofline. Their shape follows the pitch of the roof, resulting in a triangle or near-triangle that no standard blind or shade can accommodate. Smart film is trimmed to match the exact pitch and dimensions of the gable, fitting flush within the frame.

‍

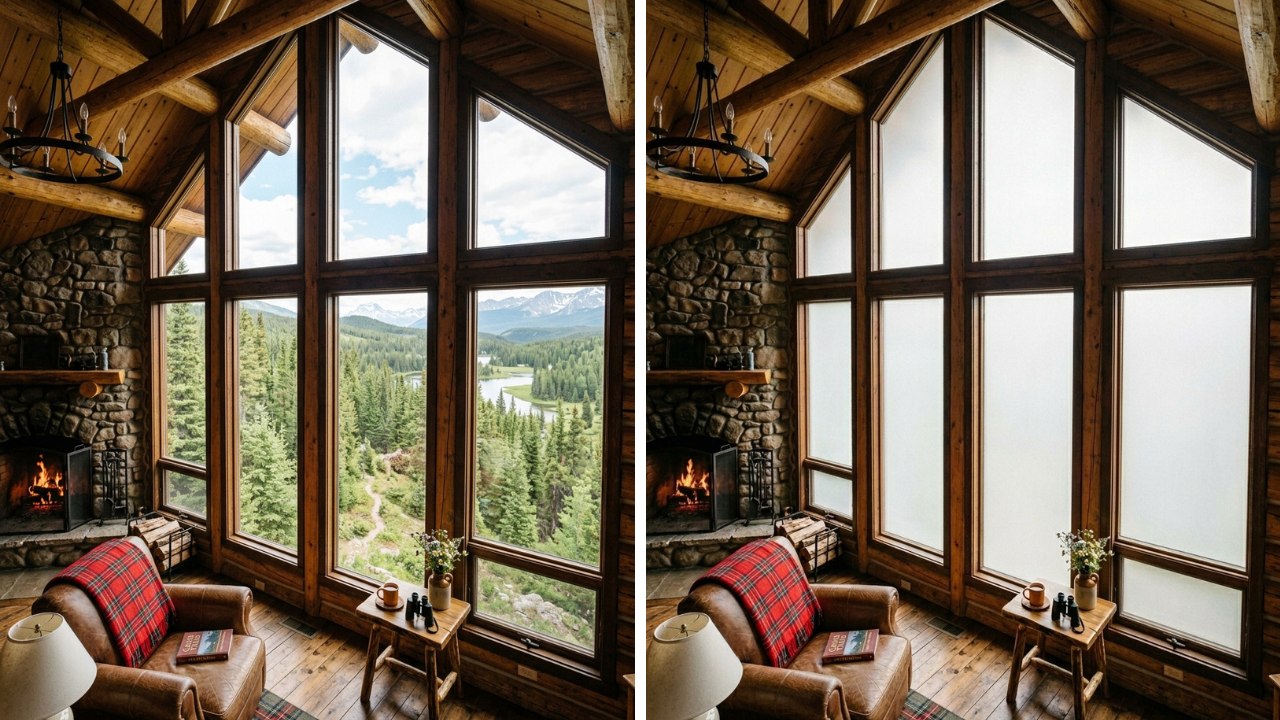

Rake Windows

Rake windows feature one or more angled edges that follow a sloped roofline rather than sitting at a horizontal or vertical axis. They are common in contemporary residential architecture and cathedral ceiling spaces. Like gable windows, their angled geometry makes conventional window treatments impractical. Smart film handles the angle cleanly by being cut to the precise rake dimensions on-site or in production.

Trapezoidal Windows

Trapezoidal windows have four sides with two parallel edges — typically a wider base and a narrower top — and are frequently found in vaulted ceiling spaces, A-frame structures, and contemporary residential design. Smart film is trimmed to the trapezoid's exact dimensions, producing a flush, gap-free finish.

‍

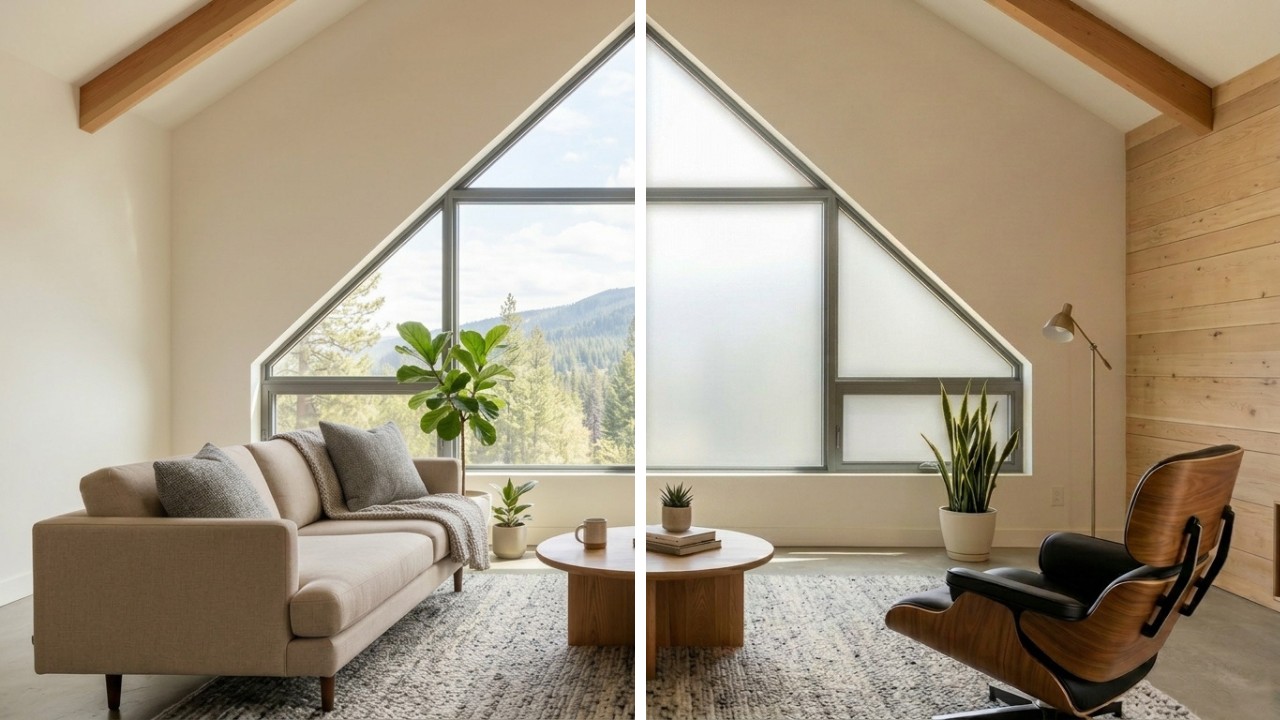

Triangular Windows

Triangular windows are used as geometric accent features in both residential and commercial architecture. They are particularly common in contemporary and modernist design. Smart film fits triangular windows cleanly, with the busbar typically positioned along one of the longer sides.

Fanlight Windows

A fanlight is a semicircular or arched window positioned above a door or larger window opening. They are a common feature in Georgian, Federal, and colonial architecture and are frequently found above residential and commercial entrance doors. Smart film for fanlights preserves the decorative shape while adding the option of instant privacy — particularly valuable for entrance applications where visibility from the street is a concern after dark.

Eyebrow and Lunette Windows

Eyebrow windows are shallow, wide curved windows typically positioned at the roofline of a building. Lunette windows are semicircular windows set into a wall or vault. Both shapes are challenging for conventional privacy treatments and are well-suited to smart film's flexible trimming capability.

Custom and Irregular Shapes

Beyond the named categories above, smart film can be applied to virtually any custom or irregular window shape. If the glass can be measured and drawn, smart film can be cut to fit it.

How Smart Film Is Cut for Specialty Window Shapes

‍

There are two approaches to cutting smart film for irregular windows — on-site trimming and pre-cut production. The right approach depends on the complexity of the project, the precision required, and whether you are ordering smart film or smart glass.

On-Site Trimming

In most cases, smart film is shipped to the installer and trimmed on-site to fit the window. This is a practical and cost-effective approach for most specialty shapes and allows for fine adjustments to be made during installation.

The trimming process itself is straightforward. The most important decision to make before cutting is busbar placement.

Understanding the Busbar

The busbar is the electrically conductive strip along the edge of the smart film where it connects to its power source. This area cannot be trimmed — it must remain intact for the film to function. Before any cutting begins, you need to determine which edge of the window the busbar will sit along, as this will define the orientation of the film during trimming.

For circular windows — including oculus and porthole windows — busbar placement is flexible. Because the window has no defined top, bottom, or sides, the busbar can be positioned at any point along the circumference without visual or functional compromise.

For arched, triangular, trapezoidal, gable, palladian, and rake windows — the busbar is typically placed along one of the straight sides of the window. This keeps the connection point discreet and allows the curved or angled edges to be trimmed cleanly.

Pre-Cut Smart Film and Smart Glass

‍

For projects requiring greater precision, or for any order of smart glass (as opposed to smart film applied to existing glass), we offer a pre-cut production service. To cut smart film or smart glass to a specialty shape in production, we require AutoCAD drawings of the window.

AutoCAD drawings provide the exact dimensions and geometry needed to cut the film or glass accurately before it leaves the facility. This is the recommended approach for complex shapes, high-specification commercial projects, or any installation where on-site trimming is not practical.

Don't Have AutoCAD Drawings?

‍

If AutoCAD drawings are not available, we provide a drawing production service. To get started, you will need to supply:

• A clear photograph of the installation site
• Accurate measurements of the window

From these, our team can produce the necessary drawings. Turnaround time is typically three to ten days, depending on complexity. The cost of drawing production and custom cutting varies based on the shape and complexity of the project. Contact your product advisor for a detailed quote.

Smart Film vs. Frosted Glass for Specialty Windows

‍

A common alternative to smart film for specialty windows is permanently frosted or sandblasted glass. While frosted glass does provide privacy, it does so permanently — there is no option to switch back to a clear view. For windows positioned to capture natural light, a landscape, or a skyline, permanent frosting represents a significant and irreversible trade-off.

Smart film gives you both. The glass can be completely transparent during the day, allowing full natural light and unobstructed views, and frosted on demand whenever privacy is needed. The decision does not have to be made at installation — it can be made in the moment, as many times as needed, for the life of the film.

For specialty windows in particular, where the shape itself is often a deliberate architectural statement, the ability to maintain the window's clear silhouette and visual presence is an important consideration. Smart film preserves the window's form and intent in both states — clear and frosted — in a way that permanent frosting cannot.

‍

Where Smart Film for Specialty Windows Is Used

‍

Residential

• Front entrances with palladian or fanlight windows — particularly valuable for privacy after dark when interior lighting makes the entryway visible from the street
• Bathrooms with circular, oculus, or porthole windows positioned over bathtubs or shower areas
• Living rooms, great rooms, and stairwells with gable, cathedral, or arched windows
• Bedrooms with specialty-shaped windows requiring nighttime privacy

Hospitality

• Hotel rooms with porthole or circular windows
• Boutique hotel lobbies and reception areas with architectural glazing
• Restaurant and bar spaces with arched or specialty-shaped feature windows
• Spa and wellness facilities requiring privacy for treatment rooms with decorative windows

Commercial

• Corporate lobbies and reception areas with architectural glass features
• Conference rooms and private offices with arched or specialty windows
• Retail environments using specialty-shaped glass as a design feature
• Healthcare facilities requiring on-demand privacy in treatment or consultation rooms

Ecclesiastical and Heritage Buildings

• Churches, cathedrals, and chapels with gothic arch or rose windows requiring privacy or light control without altering the architectural character
• Heritage and listed buildings where permanent modifications to glazing are restricted

‍

Key Benefits of Smart Film for Irregular Window Shapes

‍

Precision fit — trimmed to the exact dimensions of any window shape, eliminating the gaps and mismatches that make standard treatments impractical for specialty windows.

Preserves architectural silhouette — the window's shape remains visible and intact in both the clear and frosted state, honoring the design intent rather than concealing it.

Switchable on demand — unlike permanent frosting, smart film gives occupants full control over privacy and light at any moment.

No glass replacement required — smart film is applied to existing glass, making it a practical and cost-effective retrofit solution for both new and existing installations.

Works on any glass surface — suitable for single pane, double glazing, laminated glass, and most other glass types.

Supports automation — smart film can be integrated with smart home and building management systems, allowing privacy to be programmed, scheduled, or voice-controlled.

Clean, seamless finish — when properly trimmed and installed, smart film is virtually invisible in the clear state, producing a built-in look that requires no additional hardware or framing.

Frequently Asked Questions

‍

Can smart film be applied to curved glass? Smart film is designed for flat glass surfaces. For curved or bent glass, smart glass (glass with the PDLC layer integrated during manufacturing) is typically the more appropriate solution. Speak with your product advisor about curved glass applications.

How long does smart film last? Smart film is designed for long-term use. Lifespan varies by product and installation conditions — contact your product advisor for specifications relevant to your project.

Can smart film be applied to double glazed or IGU windows? Yes. Smart film can be applied to the interior surface of double glazed units without affecting the insulating properties of the unit.

Is smart film difficult to trim on-site? For most shapes, on-site trimming is straightforward. The most important step is determining busbar placement before cutting. For complex shapes or high-specification projects, pre-cut production is available.

What happens to smart film during a power outage? In its default unpowered state, smart film is frosted. This means that in a power outage, the glass defaults to the frosted/private position.

Can smart film be controlled remotely? Yes. Smart film can be integrated with wall switches, remote controls, smart home systems, and mobile apps depending on the control solution specified.

Summary

‍

Smart film is one of the most versatile and practical privacy solutions available for irregular and specialty window shapes. It can be precision-trimmed to any shape — circular, arched, palladian, gable, triangular, trapezoidal, rake, fanlight, or fully custom — and applied directly to existing glass without replacement. It preserves the architectural character of the window in both the clear and frosted state, and gives occupants complete, on-demand control over privacy and light.

For architects, designers, glaziers, and building owners working with specialty windows, smart film resolves a long-standing problem in a clean, elegant, and technically sound way.
