How to Install and Wire Smart Film Using Flat Wire for a Clean, Professional Finish

When it comes to Smart Film and Smart Glass installations, aesthetics matter just as much as performance. One of the biggest challenges installers face is how to conceal wires without disrupting the sleek, modern look of the glass. That’s where flat wire—also known as flat cable, ribbon cable, or planar cable—comes in.

Flat wire provides a low-profile, hidden wiring solution that allows you to install Smart Film or Smart Glass without bulky cables getting in the way. Whether you’re upgrading a conference room, adding privacy glass to a storefront, or enhancing a luxury residence, flat wire helps achieve a seamless finish.

In this post, we’ll walk through how to use flat wire for Smart Film installations, why it’s such an effective solution, and how to ensure both safety and aesthetics are maintained.
‍

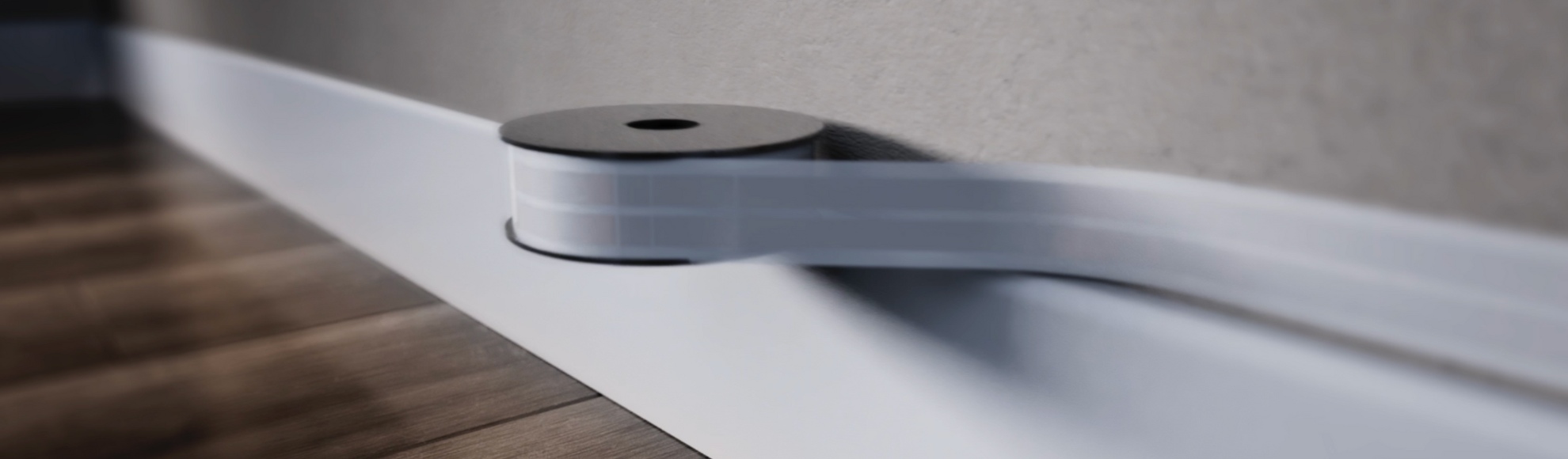

What is Flat Wire?

Flat wire, sometimes referred to as low-profile wire or flat cable, is a thin, flexible wiring option designed to blend into surfaces. Unlike traditional round cables, flat wire lays flush against glass, walls, or trim, making it an ideal choice for concealed installations.

Many flat wire products are adhesive-backed, allowing installers to mount them directly onto surfaces without the need for clips or bulky raceways. Once applied, flat wire can even be painted or spackled over, completely hiding it from view.

Benefits of Using Flat Wire for Smart Glass and Smart Film

1. Aesthetic Advantage

‍
Flat wire eliminates visible cables, maintaining the clean lines of glass surfaces and modern interiors. This is especially important in conference rooms, retail storefronts, and luxury homes, where design is a top priority.

2. Flexibility and Versatility

‍
Flat wire folds, bends, and conforms easily to the mounting area. It can run along glass edges, baseboards, crown molding, or ceilings—anywhere traditional wires would stand out.

3. Easy Installation
‍
With its adhesive backing and thin profile, flat wire installs quickly. No complicated clips or cable trays are required.

4. Higher Conductor Density
‍
The layered structure of flat wire allows for more conductors to fit in a compact space compared to round cable.

5. Seamless Integration

‍
Once installed, flat wire can be painted or spackled to match its surroundings—creating a wiring solution that’s virtually invisible.

Step-by-Step: Installing Smart Film with Flat Wire

‍

1. Prepare the Surface
Ensure the glass and surrounding surfaces are clean and free of dust. This will help the adhesive backing of the flat wire stick securely.

2. Plan the Wiring Route
Decide where the flat wire will run—typically along the frame of the glass or another inconspicuous area. Mark the route before applying.

3. Apply the Flat Wire
Peel back the adhesive backing and carefully press the wire into place. Smooth it down to eliminate air bubbles and ensure a strong bond.

4. Connect to the Smart Film
Attach the flat wire leads to the Smart Film busbar or connection points, making sure all connections are secure and properly insulated.

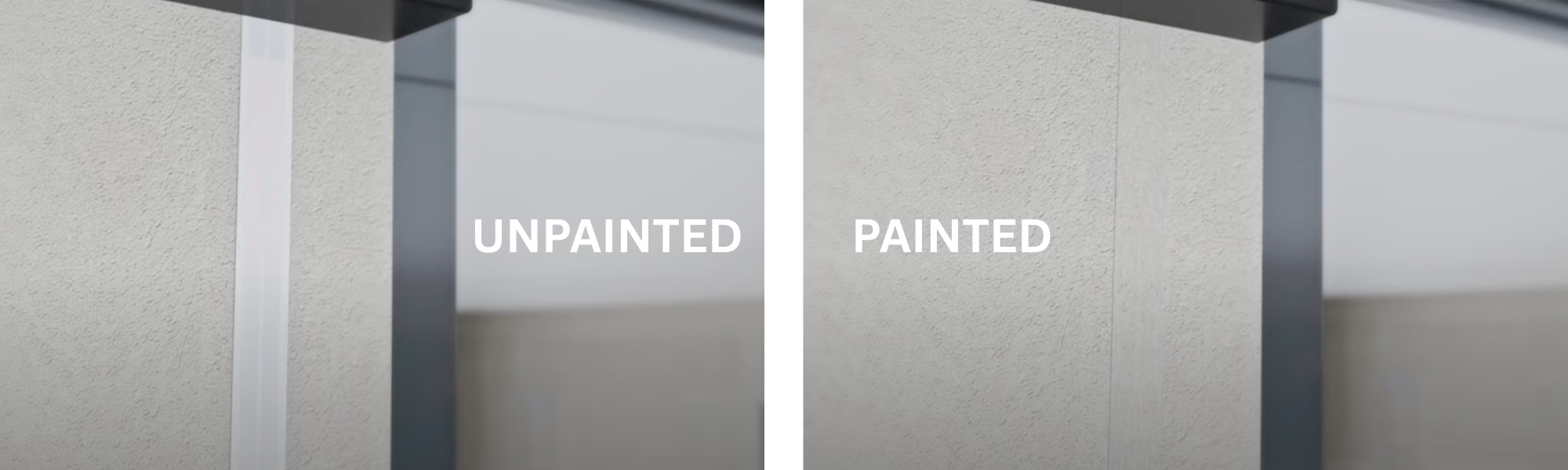

5. Conceal the Wire (Optional)
If the flat wire runs along walls or trim, apply paint or spackle to blend it seamlessly with the surface.

6. Test the System
Power on the Smart Film and test its switching functionality to ensure the wiring is working correctly before finalizing the installation.

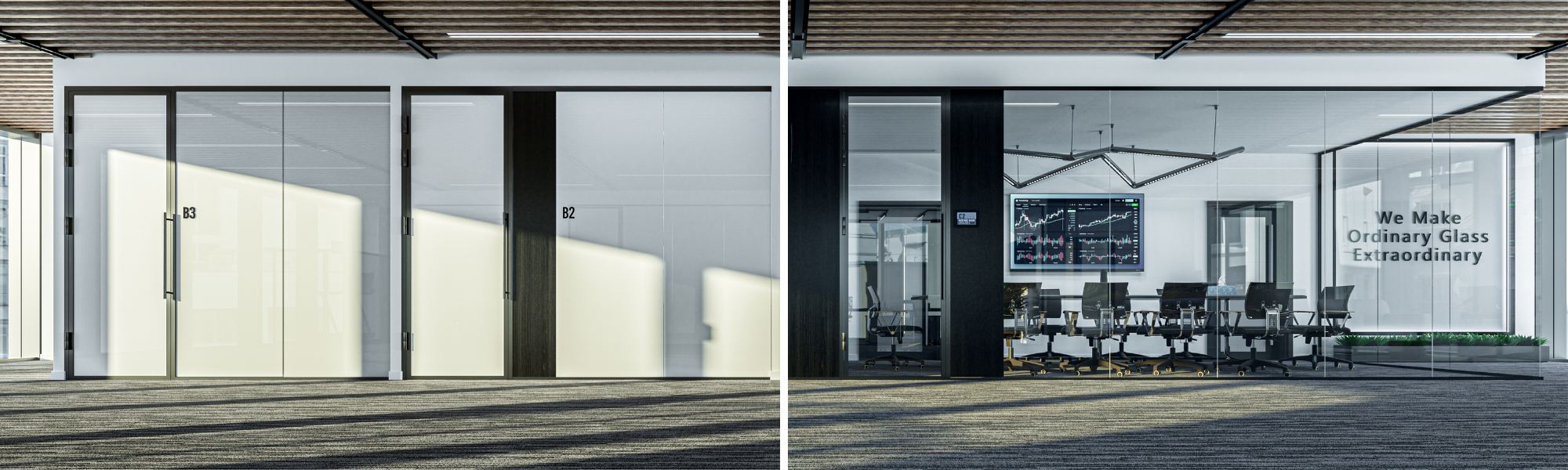

Applications of Flat Wire in Smart Film Installations

• Conference Rooms: Keep wiring invisible in high-profile office spaces.


• Retail Environments: Maintain storefront aesthetics while adding privacy glass.


• Residential Homes: Achieve a minimalist look in modern interiors.


• Medical Facilities: Create hygienic, uncluttered environments with seamless wiring.
  ‍

‍

Important Considerations

• Electrical Safety: Always confirm that flat wire is properly insulated and rated for your application.


• Code Compliance: Check local building codes before installation to ensure compliance.


• Professional Support: For complex installations, it’s best to consult with or hire a qualified electrician.



Why Flat Wire is the Best Solution for Smart Film Wiring

When installing Smart Film or Smart Glass, the goal is always to balance functionality with design. Flat wire makes it possible to deliver privacy on demand without compromising the clean, modern look that makes switchable glass so appealing.

By choosing flat wire, installers can offer clients a professional, high-end finish that sets their project apart.

FAQs About Flat Wire (Ribbon Cable / Planar Cable)

Q: What are the benefits of flat wire compared to round wire?

Flat wire provides higher conductor density in a smaller space, folds and bends more easily, and is simpler to install. It also allows for a cleaner, more aesthetic finish since it can be painted or spackled over.

Q: What is flat wire (or ribbon cable) used for?

Flat wire is commonly used for concealing cables along walls, ceilings, baseboards, and glass. In Smart Glass installations, it ensures wires remain invisible while powering the glass. It’s also used in electronics, vehicles, and data transmission where flexibility and density are important.

Q: Can flat wire be painted over?

Yes. Flat wire is designed to be low profile and can be painted, wallpapered, or spackled over to blend seamlessly with surfaces.

Q: Is flat wire safe for Smart Glass and Smart Film installations?

Yes, when installed correctly. Always ensure proper insulation and compliance with local electrical codes. For larger projects, consult a licensed electrician.

Q: What’s the difference between flat wire, ribbon cable, flat cable, and planar cable?

These terms are often used interchangeably. All refer to a thin, flat wiring solution designed to replace bulky round wires. The exact terminology may vary by industry, but the function is the same: to provide a compact, flexible, and concealable wiring option.
‍

Final Thoughts

Flat wire—whether you call it flat cable, ribbon cable, or planar cable—is more than just a wiring solution. It’s a way to preserve the sleek aesthetics of Smart Film and Smart Glass installations while ensuring reliable performance. Whether for homes, offices, or commercial spaces, it provides a minimal, hidden, and effective approach to wiring that elevates the entire project.
